Architecture and Core Specifications

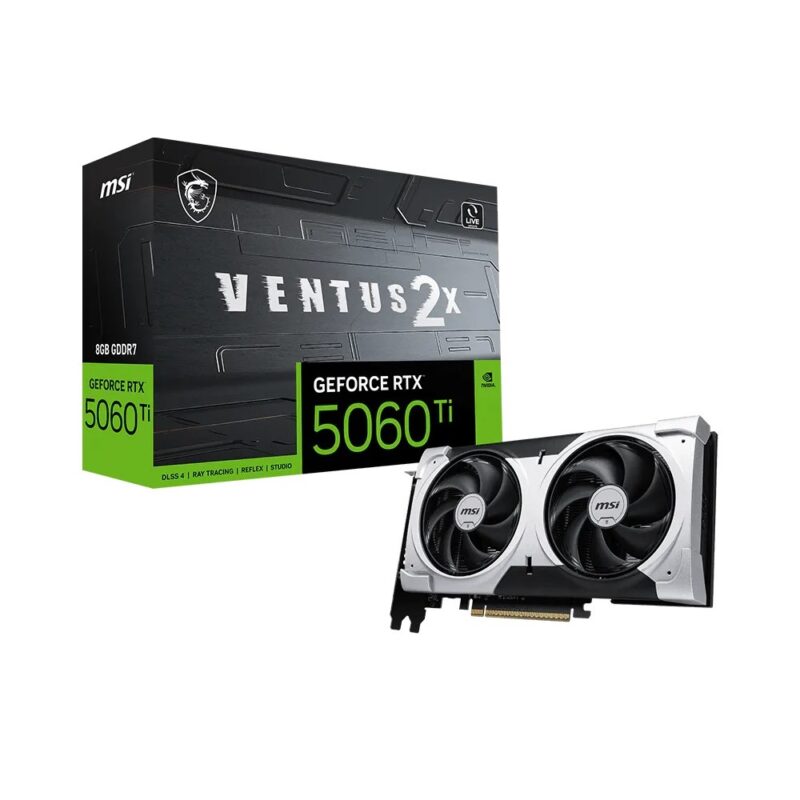

The MSI GeForce RTX 5060 Ti 8G VENTUS 2X PLUS is powered by the NVIDIA Blackwell architecture, offering hardware support for DLSS 4 and full ray tracing features . The card is equipped with 4608 CUDA cores and utilizes a PCI Express Gen 5 x16 interface . It comes with a factory overclock: the Boost Clock is set to 2602 MHz, and an “Extreme Performance” mode (accessible via MSI Center software) pushes this to 2617 MHz .
Memory and Display Outputs
This model features 8GB of GDDR7 memory running across a 128-bit memory bus at an effective speed of 28 Gbps, providing a bandwidth of 448 GB/s . For display connectivity, it includes three DisplayPort 2.1b outputs and one HDMI 2.1b output, supporting a maximum digital resolution of 7680 x 4320 .
Cooling and Physical Design

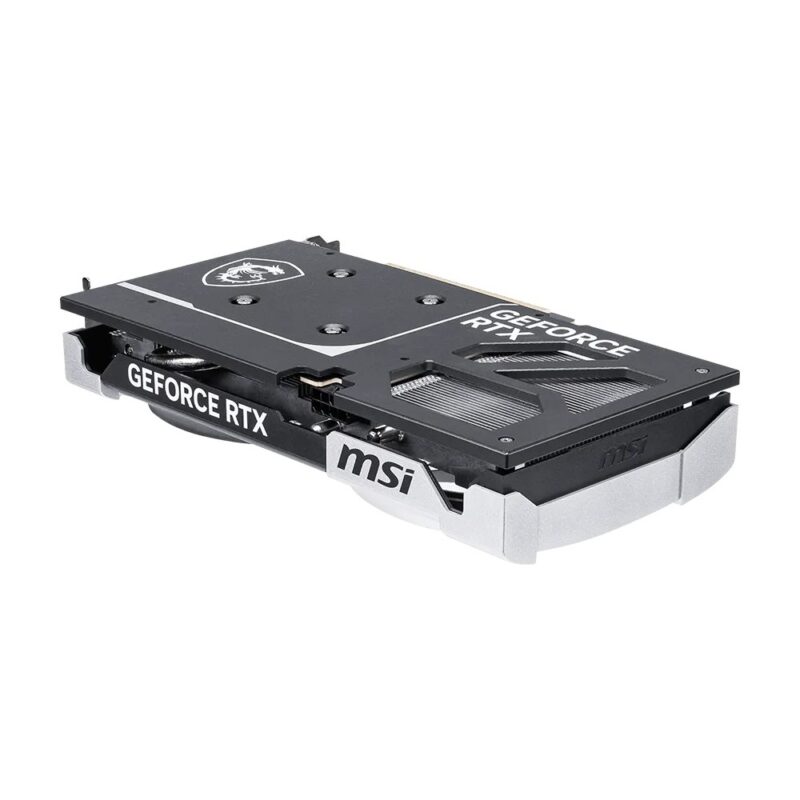

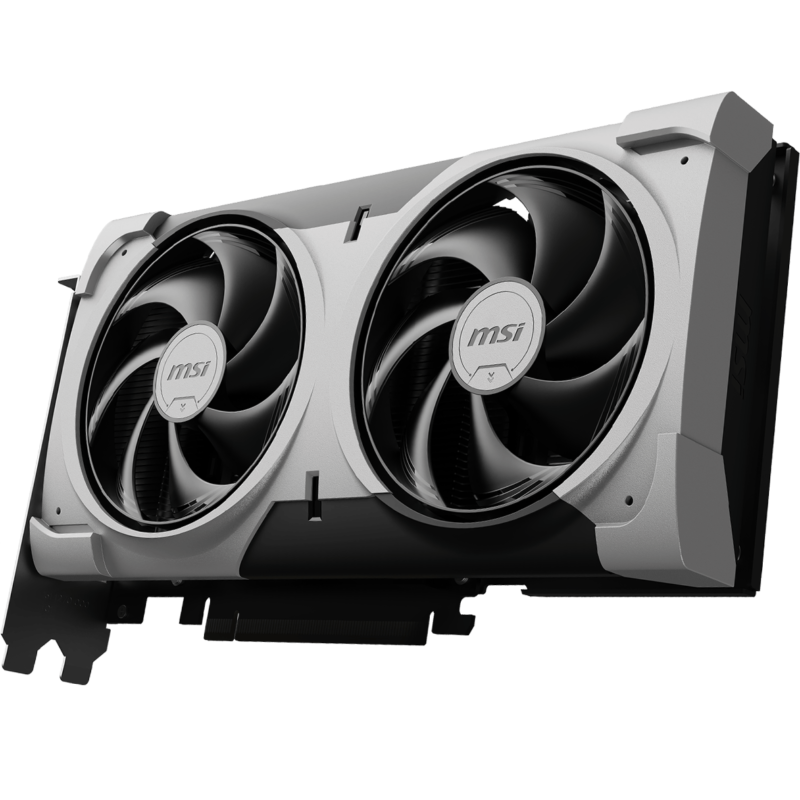

The card utilizes a compact dual-fan cooling solution measuring 227mm in length, 127mm in height, and 41mm in thickness, designed to fit into small-form-factor builds . It features MSI’s STORMFORCE fans designed for improved airflow with minimal noise, alongside a vented metal backplate for added durability and heat dissipation . The Zero Frozr function stops the fans completely during low temperatures for silent operation .
Power and Software
The card consumes 180W of power, drawing it via a single 8-pin power connector . A 600W power supply is recommended for system integration . The card is supported by MSI Center for monitoring and tuning, as well as the Afterburner overclocking software .
| Specification | Detail |
|---|---|
| Model Name | GeForce RTX™ 5060 Ti 8G VENTUS 2X PLUS |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5060 Ti |
| Architecture | NVIDIA Blackwell |
| CUDA Cores | 4608 Units |
| Memory | 8GB GDDR7 |
| Memory Interface | 128-bit |
| Memory Clock | 28 Gbps |
| Core Clock (Boost) | 2602 MHz |
| Core Clock (Extreme) | 2617 MHz (MSI Center) |
| Interface | PCIe 5.0 x16 |
| Video Output | 3x DisplayPort 2.1b, 1x HDMI 2.1b |
| Max Resolution | 7680 x 4320 |
| DirectX Version | 12 Ultimate |
| OpenGL Version | 4.6 |
| Card Dimensions (L x H x W) | 227 x 127 x 41 mm |
| Card Weight | 573 g |
| Power Consumption | 180 W |
| Recommended PSU | 600 W |
| Power Connector | 8-pin x 1 |
| Cooling Features | STORMFORCE Fans, Zero Frozr, Metal Backplate |
