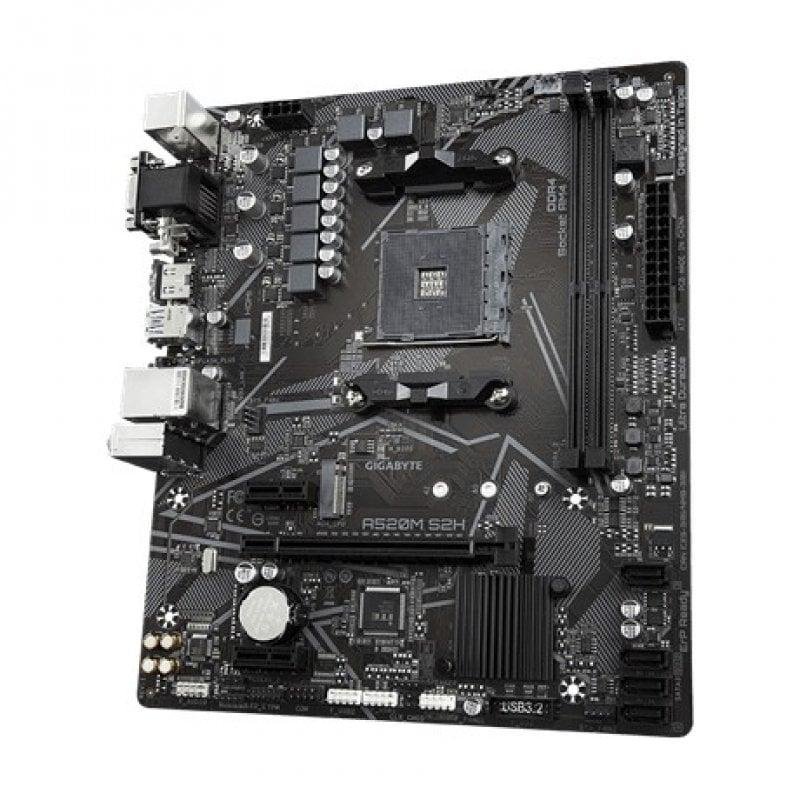

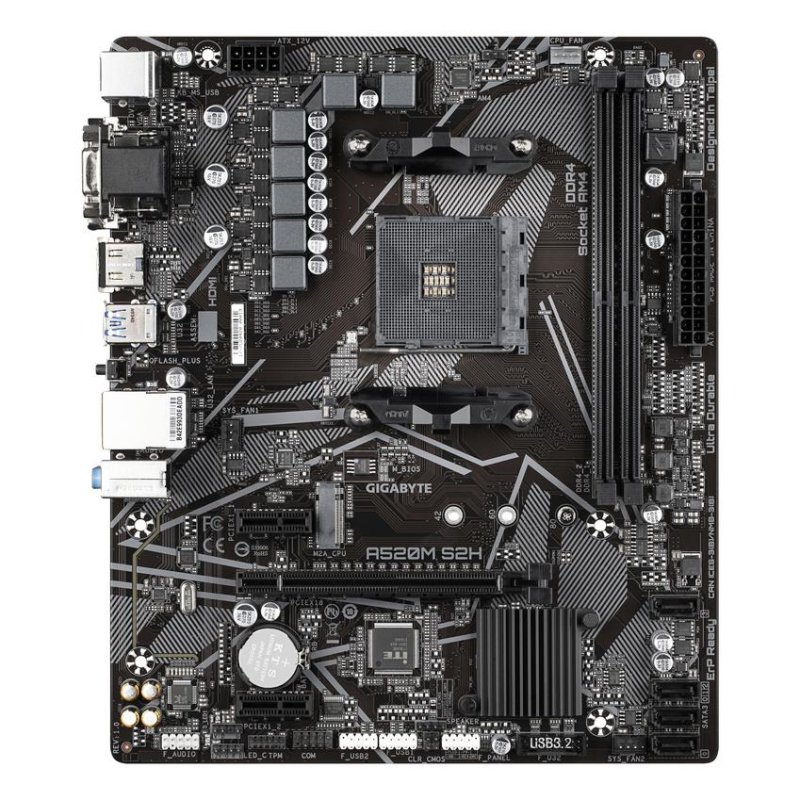

GIGABYTE A520M S2H

The GIGABYTE A520M S2H is a Micro-ATX motherboard designed for cost-effective AM4 builds . Built on the AMD A520 chipset, it supports a wide range of modern and previous-generation AMD Ryzen processors, including Ryzen 5000, 4000 G-Series, and 3000 series CPUs . The board features a pure digital 4+3 phase VRM solution, an ultra-fast NVMe PCIe 3.0 x4 M.2 slot, and GIGABYTE’s exclusive 8118 Gaming LAN with automatic bandwidth management . It is suitable for everyday computing, home office, and entry-level gaming systems.

Key Features:

• AMD AM4 Socket – Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors

• 4+3 Phases Digital VRM – Pure Digital VRM solution with Low RDS(on) MOSFETs for stable power delivery to the CPU

• Dual Channel DDR4 Memory – 2 x DIMM sockets supporting up to 64GB of system memory; overclocking support up to 5100 MHz

• Ultra-Fast M.2 Storage – NVMe PCIe 3.0 x4 M.2 connector for high-speed SSDs (supports 2242/2260/2280 SATA and PCIe drives)

• GIGABYTE Gaming LAN – Realtek 8118 Gigabit Ethernet chip with automatic bandwidth allocation for prioritizing game traffic

• RGB FUSION 2.0 – Supports addressable LED and RGB LED strips with customizable lighting effects via intuitive software

• Smart Fan 5 – Hybrid fan headers with multiple temperature sensors and FAN STOP technology for precise cooling control

• Q-Flash Plus – Update BIOS without installing CPU, memory, or graphics card

• HDMI 2.1 Graphics Output – Supports integrated graphics with HDMI 2.1 for 4K/60P output (when using compatible APU)

• Micro-ATX Form Factor – 24.4cm x 20.5cm; fits compact cases
