Processor and Chipset

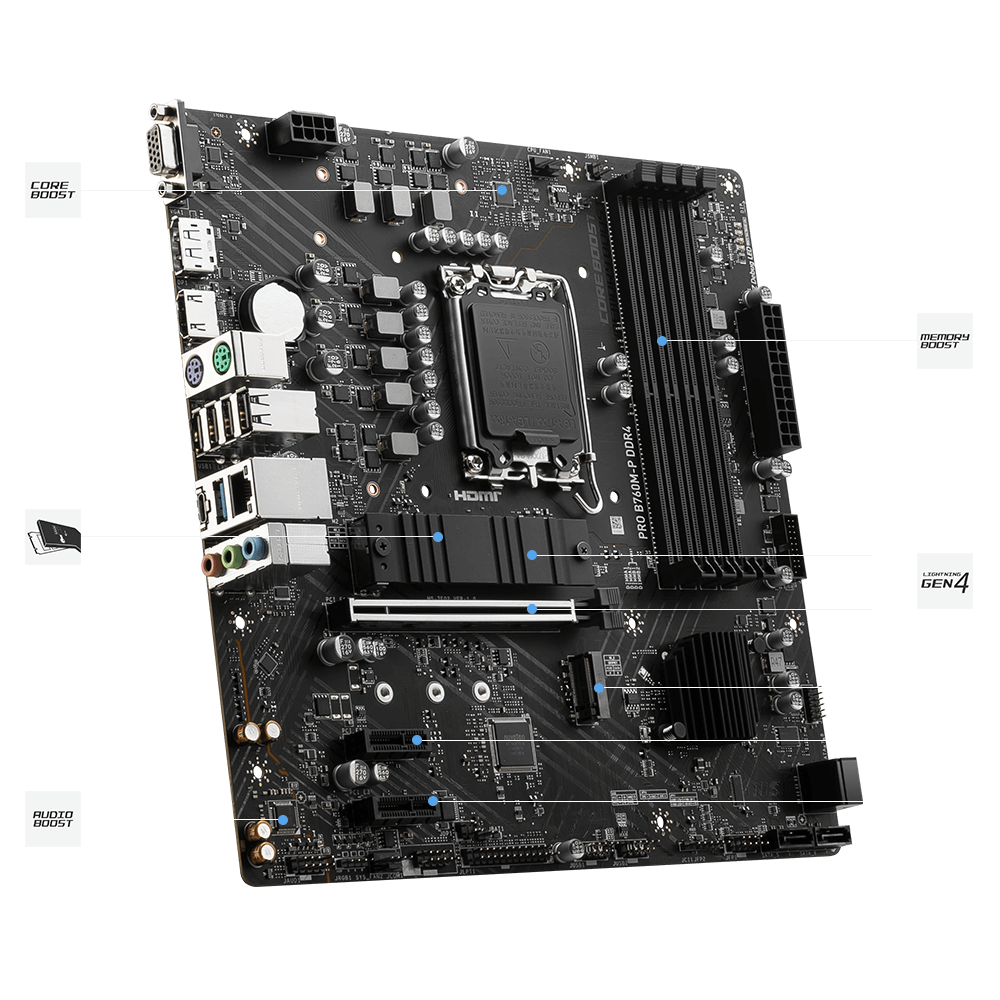

The MSI PRO B760M-P is powered by the Intel B760 chipset and features an LGA 1700 socket . It supports Intel Core 14th, 13th, and 12th Generation processors, as well as Pentium Gold and Celeron processors . The motherboard incorporates MSI’s Core Boost technology, which combines a premium layout and digital power design to deliver precise current to the CPU for stable performance under load .
Memory Support
This motherboard features four DDR4 DIMM slots supporting dual-channel memory configurations . It can accommodate up to 128GB of non-ECC, unbuffered memory . The board supports Intel Extreme Memory Profile (XMP) and can achieve overclocked speeds up to 4800 MHz, with the actual maximum frequency depending on the memory configuration and processor used .
Expansion and Storage
The PRO B760M-P provides a range of expansion options, including one PCIe 4.0 x16 slot reinforced with Steel Armor to protect against bending and EMI, and two PCIe 4.0 x1 slots . For storage, it offers two M.2 slots supporting PCIe 4.0 x4 speeds (one slot includes the M.2 Shield Frozr heatsink to prevent thermal throttling) and four SATA 6G ports . When an M.2 SATA SSD is installed in the M2_2 slot, SATA5 becomes unavailable . The board also supports RAID 0, 1, 5, and 10 for SATA storage devices .
Connectivity and I/O
The rear I/O panel includes a versatile display output selection: HDMI 1.4 (supports 4K at 30Hz), DisplayPort 1.4 (supports 4K at 60Hz), and a legacy VGA port . USB connectivity is provided by one USB 3.2 Gen 2 10Gbps Type-C port, one USB 3.2 Gen 1 5Gbps Type-A port, and four USB 2.0 ports on the rear panel, with additional headers for front panel USB . Networking is handled by a Realtek RTL8111H Gigabit LAN controller, and audio is managed by a Realtek ALC897 codec with 7.1-channel HD Audio support and Audio Boost technology . The board also features an RGB LED header for lighting synchronization via MSI Mystic Light, a TPM 2.0 pin header for hardware-based security, and four EZ Debug LEDs for troubleshooting .
| Specification | Detail |
|---|---|

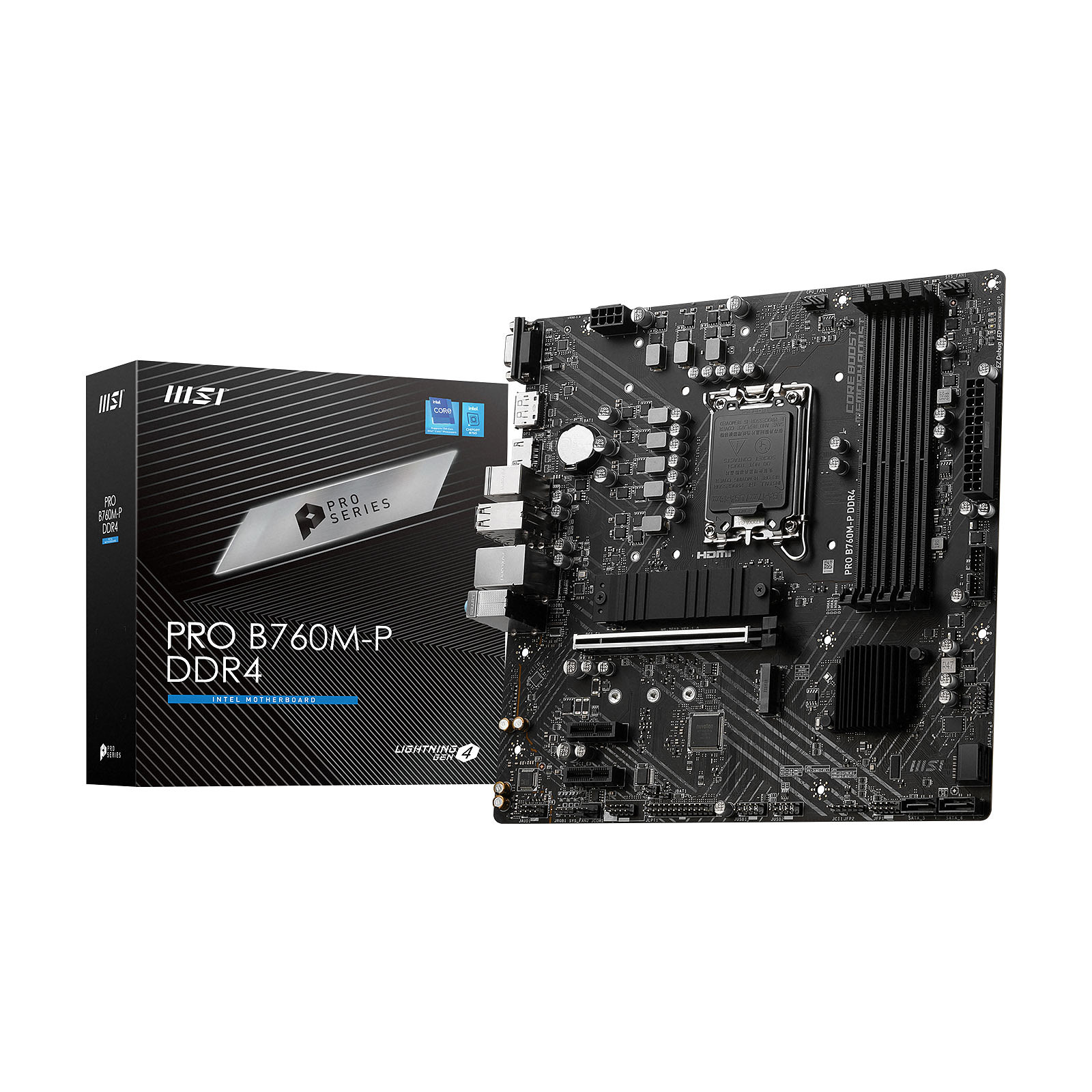

| Model Name | PRO B760M-P DDR4 |
| Chipset | Intel B760 |
| CPU Support | Intel 14th, 13th, 12th Gen Core, Pentium Gold, Celeron (LGA 1700) |
| Form Factor | Micro-ATX (243.84mm x 243.84mm) |
| Memory | 4x DDR4, Max 128GB (Dual Channel, up to 4800+MHz OC, XMP) |
| Expansion Slots | 1x PCIe 4.0 x16 (Steel Armor), 2x PCIe 4.0 x1 |
| Storage | 2x M.2 (PCIe 4.0 x4), 4x SATA 6G (RAID 0, 1, 5, 10) |
| Rear Display Outputs | HDMI 1.4 (4K@30Hz), DP 1.4 (4K@60Hz), VGA |
| Rear USB Ports | 1x USB 3.2 Gen 2 (10Gbps) Type-C, 1x USB 3.2 Gen 1 Type-A, 4x USB 2.0 |
| Audio | Realtek ALC897, 7.1-Channel HD Audio, Audio Boost |
| LAN | Realtek RTL8111H Gigabit LAN |
| Internal Headers | 1x CPU Fan, 2x System Fan, 1x RGB LED (JRGB), 1x TPM 2.0, 4x EZ Debug LED |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
